LPCS02-C

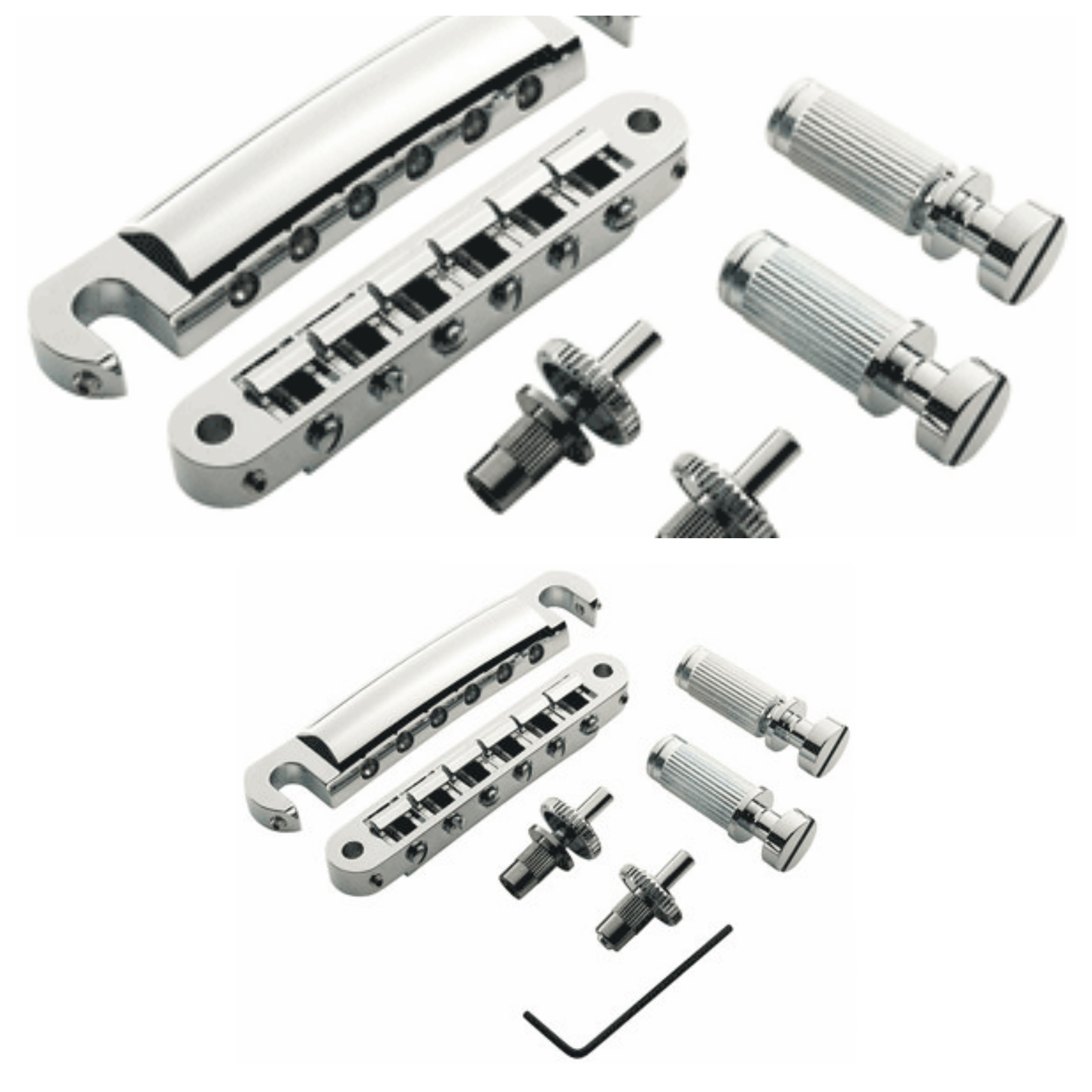

Model: LPCS02-C TonePros Standard (US/Imperial Thread) Bridge/Tailpiece Set w/ TP6 Bridge & T1ZS Tailpiece, Chrome.

The TP6 Bridge is a locking version of the Nashville type standard small post and threaded insert as found standard on current USA Gibson Les Paul GT and Gibson SG GT models. (Same format as LP Standard & LP Custom). Un-notched saddles for professional installation. Can be fit with many standard sized Piezo and & aftermarket graphite or exotic saddle materials. Direct retrofit for most USA guitars without modification.
The T1Zs Tailpiece is a standard style Locking Stop Bar Tailpiece. Fits most Tune-O-Matic Style guitars. The T1ZS features standard US threads that fit most USA guitars. The T1Z features metric threads that fit most imported guitars and many USA models without modification.
Tone Pros components completely solidify your instrument! Your System II bridge will not only just stay on, our system solidifies your bridge in place like stone! In most cases after installation and adjustment, your bridge and tailpiece will not move or “wiggle” at all. Because of our design, even play or movement in the threads is reduced so that when you adjust your action and intonation, it is set and solid. This of course improves your sustain and tonal qualities, makes harmonics “jump” out of your guitar, and causes your instrument to play and stay in tune better.
DO THE TEST FOR YOURSELF…
Next time you have the strings off of your guitar, hold your bridge between your thumb and index finger while it still rests on your guitar and wiggle it. If it moves (and it will), you are not getting the intonation and harmonics you deserve, especially after the size of the investment you have made in that special guitar. The greater the wiggle, the greater the problem. TonePros® Patent Issued components have the solution, isn’t it time you get the tone and results you expect and deserve?

SPECS:
Bridge Post Thread: 5mm Metric (as used by Gibson on Nashville Models)
Bridge Post to Post Spacing: 2.93 inches/ 74.mm
Saddle Notch: Un-Notched Saddles
Saddle Material: Zamak
Bridge Material: Zamak
Bridge Post/Thumbwheel Material: Brass
Radius: 12 inch
Tailpiece Stud Thread: 5/16 – 24 US Thread
Tailpiece Stud to Stud Spacing: 3.22 inches/ 82mm
Tailpiece Material: Zamak
Stud Material: Brass
