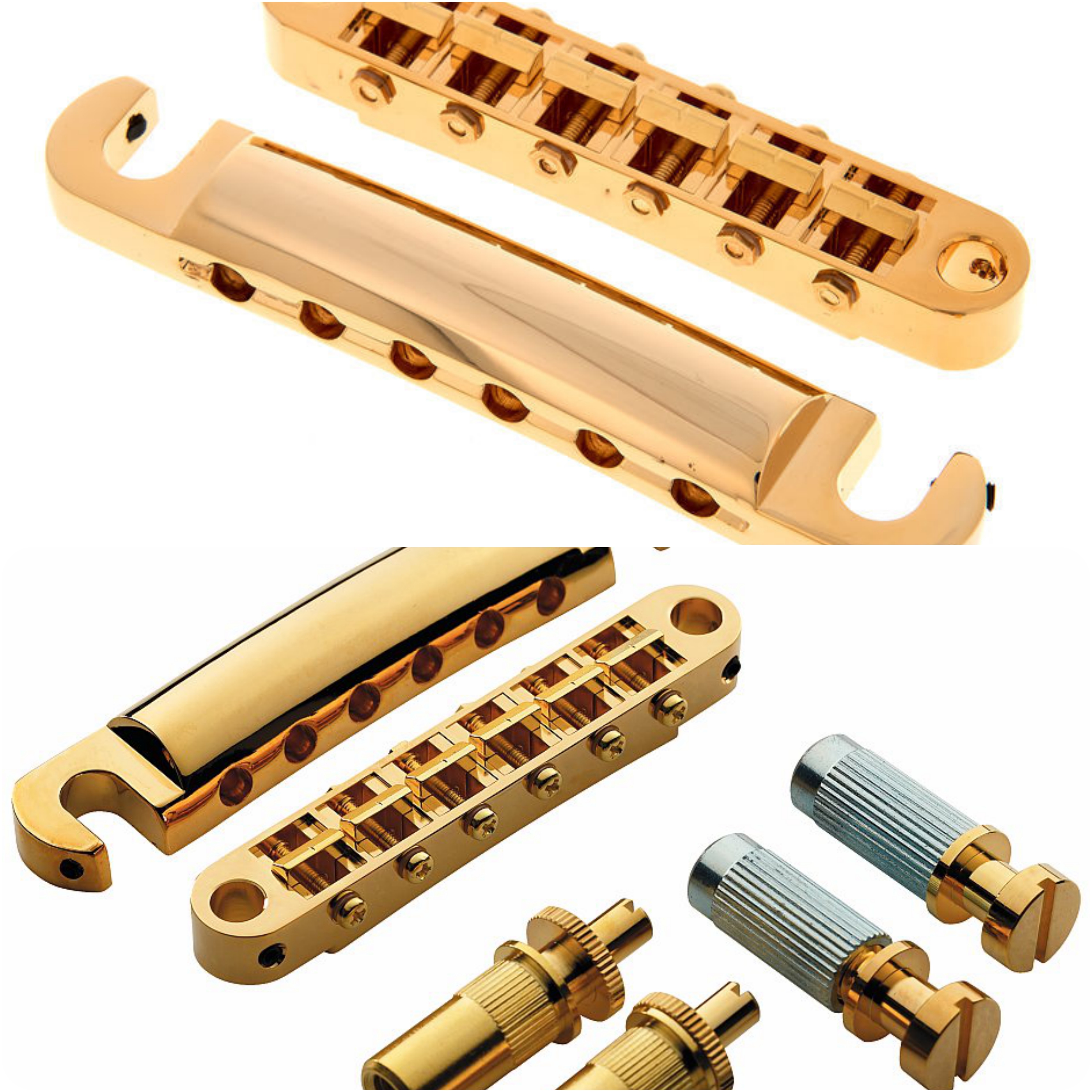

The T3BT Locking Nashville style bridge with the same easy to use features as T3BP, but equipped with large post, metric thread, and pre-notched saddles. This model fits most guitars made overseas. Direct retrofit for many USA guitars without modification
The T1Z Tailpiece is a standard style Locking Stop Bar Tailpiece. Fits most Tune-O-Matic Style guitars. The T1Z features metric threads that fit most imported guitars and many USA models without modification.
Tone Pros components completely solidify your instrument! Your System II bridge will not only just stay on, our system solidifies your bridge in place like stone! In most cases after installation and adjustment, your bridge and tailpiece will not move or wiggle at all. Because of our design, even play or movement in the threads is reduced so that when you adjust your action and intonation, it is set and solid. This of course improves your sustain and tonal qualities, makes harmonics jump out of your guitar, and causes your instrument to play and stay in tune better.
DO THE TEST FOR YOURSELF¦
Next time you have the strings off of your guitar, hold your bridge between your thumb and index finger while it still rests on your guitar and wiggle it. If it moves (and it will), you are not getting the intonation and harmonics you deserve, especially after the size of the investment you have made in that special guitar. The greater the wiggle, the greater the problem. TonePros® Patent Issued components have the solution, isn’t it time you get the tone and results you expect and deserve?
SPECS:
T3BT Model: TonePros Metric (Metric Thread) Tune-O-Matic Bridge
Thread: 8mm x 1.25 Metric
Post to Post Spacing: 74mm
Saddle Notch: Pre-Notched Saddles
Saddle Material: Zamak
Bridge Material: Zamak
Post/Thumbwheel Material: Brass
Radius: 12 inch
String Spread: Approx. 10.4mm
Post Top Width: .23 Inches/ 6mm (Metric Flathead Post Top)
T1Z Model: TonePros Metric (Metric Thread) Tailpiece
Thread: 8mm x 1.25 Metric
Stud to Stud Spacing: 3.22 inches/ 82mm
Tailpiece Material: Zamak
Stud Material: Brass
Stud Cap Size: 13mm/.5in
