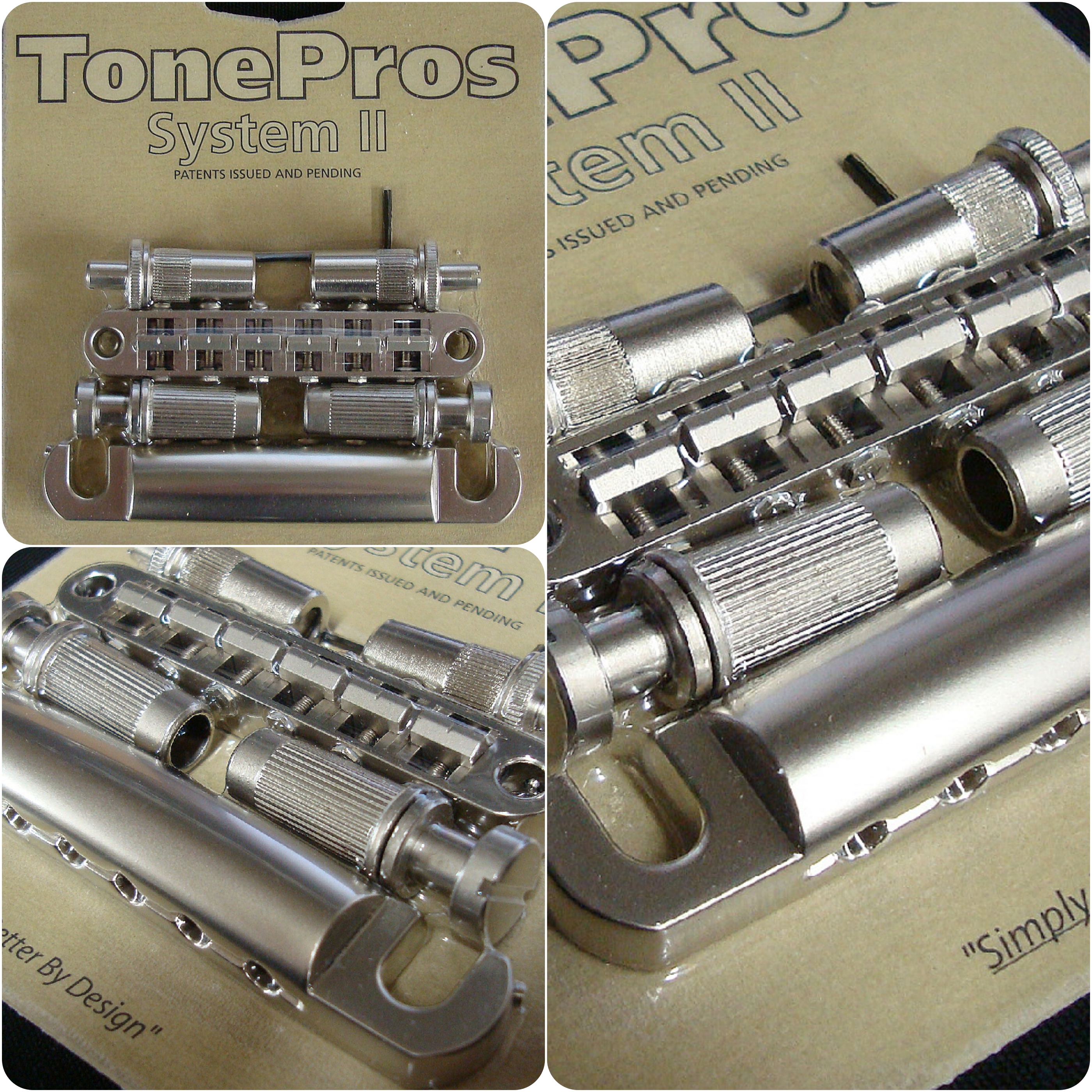

The TonePros System II Bridge and Tailpiece components come as a package set, ready to install on your guitar. The package includes: 1. TonePros Patent Issued System II Pre-Notched Bridge with matching threaded adjustment posts. 2. TonePros Patent Issued System II Tailpiece with matching threaded adjustment studs. 3. Allen style adjustment tool for use with both bridge and tailpiece. The LPM02 includes the TonePros T3BT Bridge and T1Z Tailpiece. These matched bridge and tailpiece are metric threads and fit most overseas guitars without modification.
The TonePros T3BT is a locking Nashville style bridge with “easy to use” features like intonation adjustment on the pickup side, phillips head saddle adjustment screws, and pre-notched saddles, large posts, and metric thread. This model fits most guitars made overseas.
The T1Z Tailpiece is a standard style Locking Stop Bar Tailpiece. Fits most Tune-O-Matic Style guitars. The T1Z features metric threads that fit most imported guitar models without modification.
Tone Pros components completely solidify your instrument! Your System II bridge will not only just stay on, our system solidifies your bridge in place like stone! In most cases after installation and adjustment, your bridge and tailpiece will not move or “wiggle” at all. Because of our design, even play or movement in the threads is reduced so that when you adjust your action and intonation, it is set and solid. This of course improves your sustain and tonal qualities, makes harmonics “jump” out of your guitar, and causes your instrument to play and stay in tune better.
DO THE TEST FOR YOURSELF…
Next time you have the strings off of your guitar, hold your bridge between your thumb and index finger while it still rests on your guitar and wiggle it. If it moves (and it will), you are not getting the intonation and harmonics you deserve, especially after the size of the investment you have made in that special guitar. The greater the wiggle, the greater the problem. TonePros® Patent Issued components have the solution, isn’t it time you get the tone and results you expect and deserve?
SPECS:
T3BT Model: TonePros Metric (Metric Thread) Tune-O-Matic Bridge
Thread: 8mm x 1.25 Metric
Post to Post Spacing: 74mm
Saddle Notch: Pre-Notched Saddles
Saddle Material: Zmak
Bridge Material: Zmak
Post/Thumbwheel Material: Brass
Radius: 12 inch
String Spread: Approx. 10.4mm
T1Z Model: TonePros Metric (Metric Thread) Tailpiece
Thread: 8mm x 1.25 Metric
Stud to Stud Spacing: 3.22 inches/ 82mm
Tailpiece Material: Zmak
Stud Material: Brass
