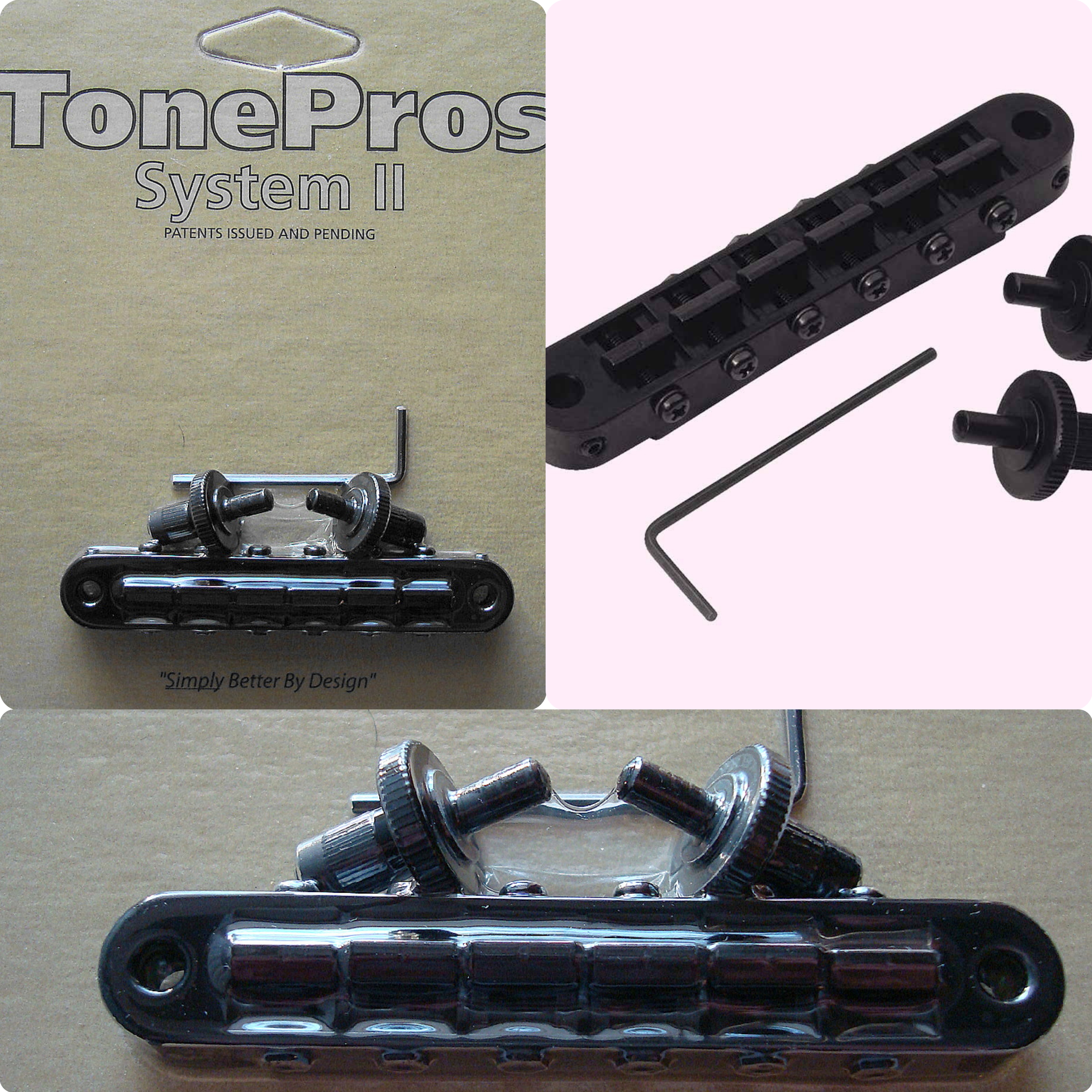

This Locking Nashville style bridge has many improvements including intonation adjustment on the pickup side; phillips head saddle adjustment screws, and pre-notched saddles for quick installation. Standard small post and standard threaded insert. Direct retrofit for most USA guitars without modification.
SPECS:
Thread: 5 mm Metric (as used by Gibson on Nashville Models)
Post to Post Spacing: 2.93 Inches/ 74.4mm
Saddle Notch: Pre-Notched Saddles
Saddle Material: Zmak
Bridge Material: Zmak
Post/Thumbwheel Material: Brass
Radius: 12 inch
String Spread: Approx. 10.4mm
Post Top Width: .15 Inches/ 4mm
