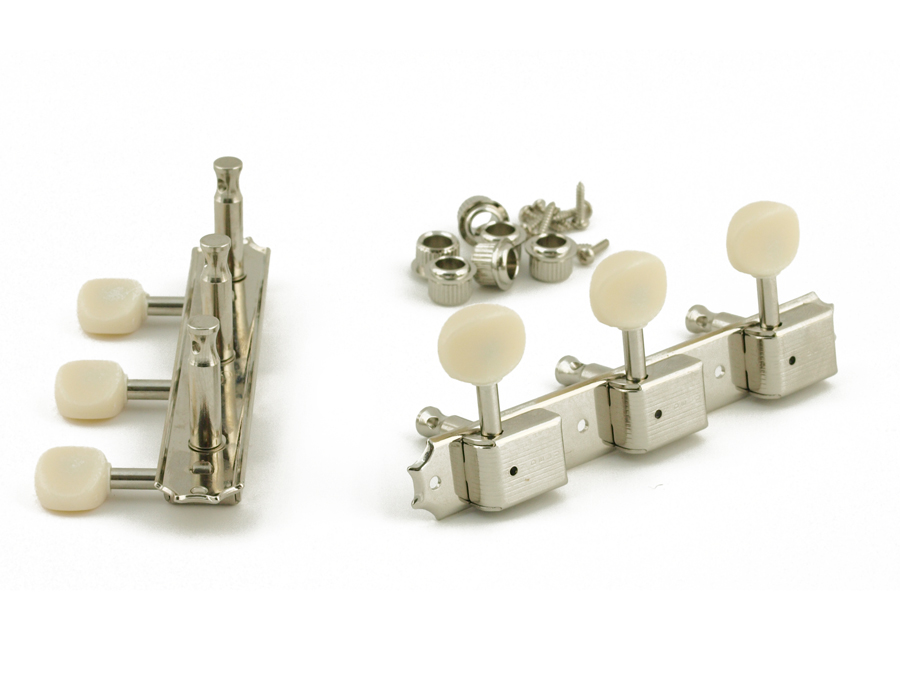

Kluson® replacement for Gibson® Melody Maker®, Les Paul®, Les Paul jr.®, SG® just like the originals but with the improved 15:1 ratio.
Key dimensions:
Total center to center distance of all 3 posts – 2 3/4 in.
Center to center distance between posts – 1 3/8 in.
Length of baseplate- 4 1/4 in.
Post height – 1 in.
Drilled post, single hole
Post dia. 6.3 mm (1/4 in.)
This is a complete set and comes with both left and ride side tuners. Also comes complete with bushings and mounting screws. These are stamped KLUSON DELUXE in a double line down the back.
Historically used on:
1956 – 1964 Kay® Guitars (countless models)
1956 – 1964 Gibson® LG-1, LG-2 & LG-3
1956 – 1964 Gibson® J-45
1956 – 1964 Gibson® J-50
1956 – 1959 Gibson® CF-100E
1956 – 1964 Gibson® ES-125
1956 – 1964 Gibson® ES-140
1956 Gibson® ES-150
1956 – 1961 Gibson® Les Paul Junior
1961 – 1963 Gibson® Les Paul Junior / SG Junior
1963 – 1964 Gibson® SG Junior
1956 – 1959 Gibson® Les Paul Special
1960 – 1961 Gibson® Les Paul / SG Special
1960 – 1964 Gibson® SG Special
1959 – 1964 Gibson® Melody Maker
1962 – 1964 Gibson® B-25
1958 Gibson® LG-0
1958 – 1964 Epiphone® Cortez
1958 – 1964 Epiphone® Century
1958 – 1963 Epiphone® Wilshire
1958 – 1963 Epiphone® Coronet
1958 – 1964 Epiphone® Texan
